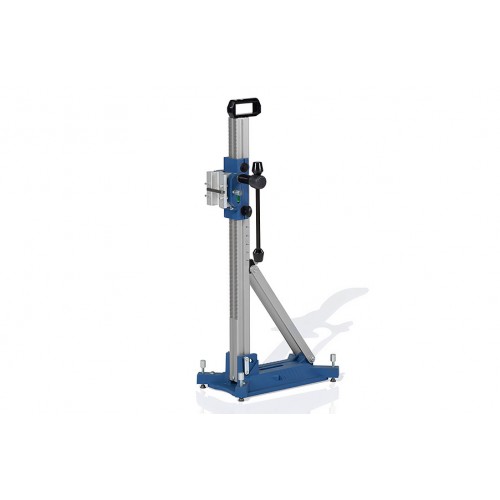

Drill-Jet Stand CDR162 Lissmac

Simple assembly and efficient exchange of the core drill motors via the UNIVERSAL quick clamping collar system.
The UNIVERSAL-mounting plate makes it easy to mount any drill motor precisely
Ergonomic and effortless core drilling thanks to a hand crank which can be operated from either side
The support feed is precisely controllable with 1:1 direct ratio or an additional 1:2 fine control ratio.
Precise support guidance using V-sliding blocks and the aluminium profile column
The bearing guide is precise and sturdy, and can be easily adjusted
The steel gear rack is safely built into the aluminum column
The aluminium profile column can be pivoted back by up to 45° for drilling at an angle
The integrated handle on the aluminium profile column offers multi-purpose handling and drilling stand transport
Precise alignment of the core drilling stand by four levelling screws as well as a vertical and horizontal water level integrated in the “support”
The support can be locked in any position with a locking screw, for stepless hight adjustment

CDR 162 USA

core bits-Ø recommended5.91 inch
core bits-Ø max.6.38 inch
adjustable useful length23.03 inch
motor mounting usingcollar-Ø 2.36 inch
feed gears operated from either side1:1
feedhand crank
angle drilling90° – 45°
drill stand footalu
fasteningdowel (vacuum opt.)
leveling (horizontal/vertical)spirit levels
dimensions (L/W/H)17.72/9.06/35.43 inch
weight16.98 lbs
